MICRO 100

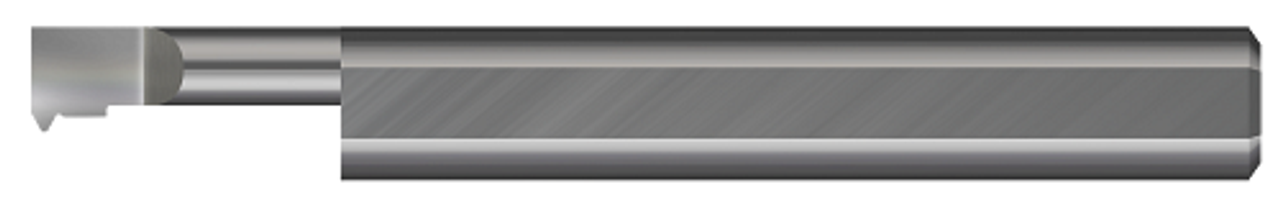

Right Hand - 8.000 mm Min Bore DIA x 24.00 mm Max Bore Depth x 0.812 mm Projection x 2.00" OAL M10x1.5
- SKU:
- TMT-100150-24
- MPN:
- TMT-100150-24
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
8.000 mm Min Bore DIA x 24.00 mm Max Bore Depth x 0.812 mm Projection x 0.3125" Shank DIA x 2.00" Overall Length M10x1.5 - Carbide Metric Thread - Topping Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
8.000 mm |
Head Width: |
7.50 mm |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
24.00 mm |
Projection: |
0.812 mm |
Shank Diameter: |
0.3125" |
Centerline Offset: |
3.530 mm |
Offset: |
0.703 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Neck Diameter: |
6.410 mm |
Overall Length: |
2.00" |
Thread Size: |
M10x1.5 |
Metric: |
Y |
