MICRO 100

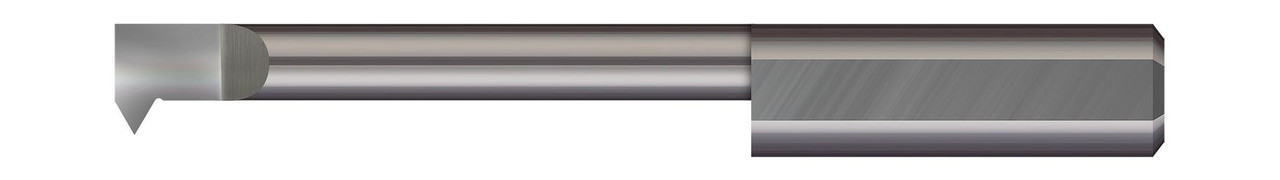

RIGHT HAND - 7.400 MM MIN BORE DIA X 20.00 MM MAX BORE DEPTH X 2.210 MM TOOTH WIDTH X 1.910 MM PROJECTION X 63.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.75-2.25 - TIN COATED,ITM-087420G
- SKU:
- ITM-087420G
- MPN:
- ITM-087420G
- Availability:
- 23
- Shipping:
- Calculated at Checkout
Description
7.400 MM MIN BORE DIA X 20.00 MM MAX BORE DEPTH X 2.210 MM TOOTH WIDTH X 1.910 MM PROJECTION X 8.000 MM SHANK DIA X 63.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.75-2.25 - CARBIDE UN THREAD RIGHT HAND, TIN COATED,ITM-087420G
View AllClose
Additional Information
Min Bore Diameter: |
7.950 mm |
Head Width: |
7.40 mm |
Hand Direction: |
right hand |
Coating: |
TiN |
Max Bore Depth: |
20.00 mm |
Projection: |
1.910 mm |
Shank Diameter: |
8.000 mm |
Centerline Offset: |
3.400 mm |
Offset: |
1.090 mm |
Radius: |
0.050 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Face Dimension: |
0.16 mm |
Neck Diameter: |
5.380 mm |
Overall Length: |
63.0 mm |
Split Length: |
5.50 mm |
Thread Size: |
.75-3.5 mm |
Tooth Width: |
2.210 mm |
TPI: |
.75-3.5 mm |
Metric: |
Y |
