MICRO 100

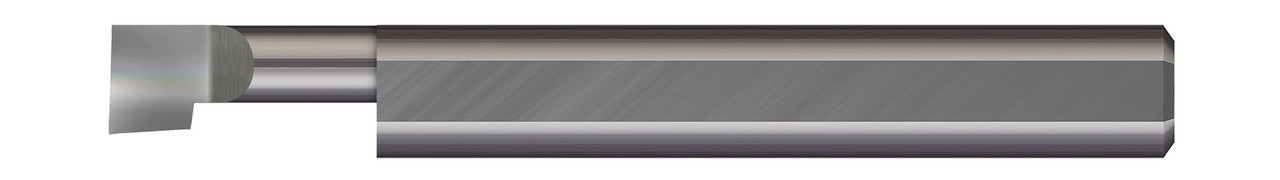

RIGHT HAND - 6.000 MM MIN BORE DIA X 25.00 MM MAX BORE DEPTH X 3.810 MM TOOTH WIDTH X 1.500 MM PROJECTION X 57.0 MM OVERALL LENGTH - ALTIN COATED,BBM-060625X
- SKU:
- BBM-060625X
- MPN:
- BBM-060625X
- Availability:
- 26
- Shipping:
- Calculated at Checkout
Description
6.000 MM MIN BORE DIA X 25.00 MM MAX BORE DEPTH X 3.810 MM TOOTH WIDTH X 1.500 MM PROJECTION X 6.000 MM SHANK DIA X 57.0 MM OVERALL LENGTH - CARBIDE BORING STANDARD RIGHT HAND, ALTIN COATED,BBM-060625X
View AllClose
Additional Information
Min Bore Diameter: |
6.500 mm |
Head Width: |
6.00 mm |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
25.00 mm |
Projection: |
1.500 mm |
Shank Diameter: |
6.000 mm |
Centerline Offset: |
3.000 mm |
Face Dimension: |
0.12 mm |
Neck Diameter: |
4.500 mm |
Overall Length: |
57.0 mm |
Split Length: |
4.20 mm |
Tooth Width: |
3.810 mm |
Metric: |
Y |
