MICRO 100

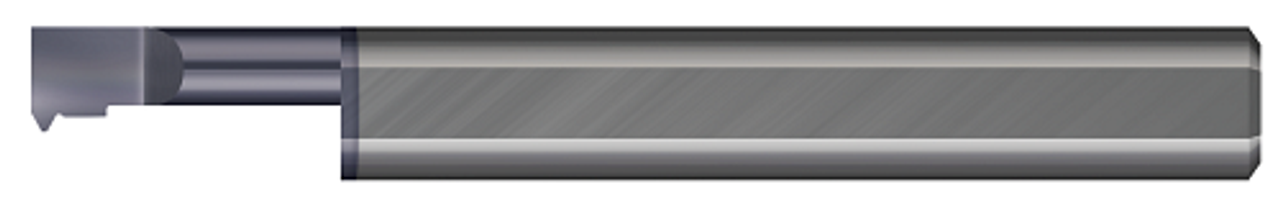

Right Hand - 6.000 mm Min Bore DIA x 22.00 mm Max Bore Depth x 0.677 mm Projection x 2.00" OAL M8x1.25 - AlTiN Coated
- SKU:
- TMT-080125-22X
- MPN:
- TMT-080125-22X
- Availability:
- 23
- Shipping:
- Calculated at Checkout
Description
6.000 mm Min Bore DIA x 22.00 mm Max Bore Depth x 0.677 mm Projection x 0.3125" Shank DIA x 2.00" Overall Length M8x1.25 - Carbide Metric Thread - Topping Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
6.000 mm |
Head Width: |
5.50 mm |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
22.00 mm |
Projection: |
0.677 mm |
Shank Diameter: |
0.3125" |
Centerline Offset: |
1.530 mm |
Offset: |
0.607 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Neck Diameter: |
4.550 mm |
Overall Length: |
2.00" |
Thread Size: |
M8x1.25 |
Metric: |
Y |
