MICRO 100

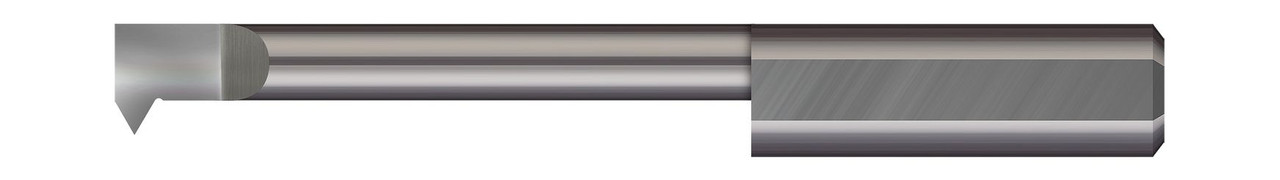

RIGHT HAND - 5.800 MM MIN BORE DIA X 25.00 MM MAX BORE DEPTH X 1.750 MM TOOTH WIDTH X 1.500 MM PROJECTION X 63.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.25-2.0,ITM-085825
- SKU:
- ITM-085825
- MPN:
- ITM-085825
- Availability:
- 8
- Shipping:
- Calculated at Checkout
Description
5.800 MM MIN BORE DIA X 25.00 MM MAX BORE DEPTH X 1.750 MM TOOTH WIDTH X 1.500 MM PROJECTION X 8.000 MM SHANK DIA X 63.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.25-2.0 - CARBIDE UN THREAD RIGHT HAND,ITM-085825
View AllClose
Additional Information
Min Bore Diameter: |
6.350 mm |
Head Width: |
5.80 mm |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
25.00 mm |
Projection: |
1.500 mm |
Shank Diameter: |
8.000 mm |
Centerline Offset: |
1.800 mm |
Offset: |
0.860 mm |
Radius: |
0.050 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Face Dimension: |
0.16 mm |
Neck Diameter: |
4.170 mm |
Overall Length: |
63.0 mm |
Split Length: |
5.50 mm |
Thread Size: |
.75-2.5 mm |
Tooth Width: |
1.750 mm |
TPI: |
.75-2.5 mm |
Metric: |
Y |
