MICRO 100

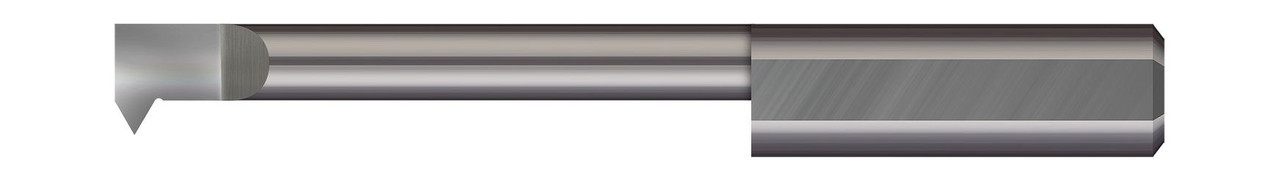

RIGHT HAND - 5.100 MM MIN BORE DIA X 28.00 MM MAX BORE DEPTH X 1.420 MM TOOTH WIDTH X 1.320 MM PROJECTION X 57.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.25-1.75 - ALTIN COATED,ITM-065128X
- SKU:
- ITM-065128X
- MPN:
- ITM-065128X
- Availability:
- 20
- Shipping:
- Calculated at Checkout
Description
5.100 MM MIN BORE DIA X 28.00 MM MAX BORE DEPTH X 1.420 MM TOOTH WIDTH X 1.320 MM PROJECTION X 6.000 MM SHANK DIA X 57.0 MM OVERALL LENGTH X 0.050 MM RADIUS 1.25-1.75 - CARBIDE UN THREAD RIGHT HAND, ALTIN COATED,ITM-065128X
View AllClose
Additional Information
Min Bore Diameter: |
5.650 mm |
Head Width: |
5.10 mm |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
28.00 mm |
Projection: |
1.320 mm |
Shank Diameter: |
6.000 mm |
Centerline Offset: |
2.100 mm |
Offset: |
0.760 mm |
Radius: |
0.050 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Face Dimension: |
0.12 mm |
Neck Diameter: |
3.680 mm |
Overall Length: |
57.0 mm |
Split Length: |
4.50 mm |
Thread Size: |
.75-2.0 mm |
Tooth Width: |
1.420 mm |
TPI: |
.75-2.0 mm |
Metric: |
Y |
