MICRO 100

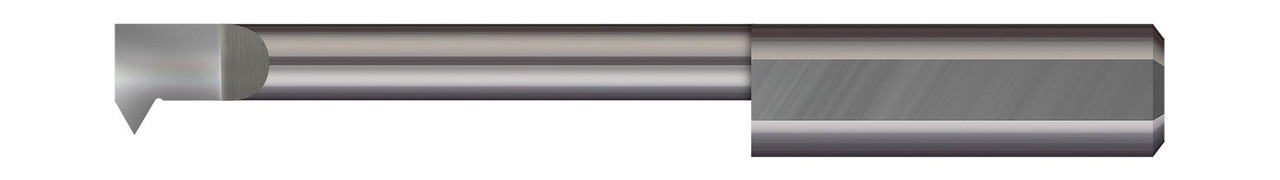

RIGHT HAND - 11.400 MM MIN BORE DIA X 50.00 MM MAX BORE DEPTH X 3.710 MM TOOTH WIDTH X 3.230 MM PROJECTION X 83.0 MM OVERALL LENGTH X 0.050 MM RADIUS 2.0-4.0,ITM-121150
- SKU:
- ITM-121150
- MPN:
- ITM-121150
- Availability:
- 26
- Shipping:
- Calculated at Checkout
Description
11.400 MM MIN BORE DIA X 50.00 MM MAX BORE DEPTH X 3.710 MM TOOTH WIDTH X 3.230 MM PROJECTION X 12.000 MM SHANK DIA X 83.0 MM OVERALL LENGTH X 0.050 MM RADIUS 2.0-4.0 - CARBIDE UN THREAD RIGHT HAND,ITM-121150
View AllClose
Additional Information
Min Bore Diameter: |
11.950 mm |
Head Width: |
11.40 mm |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
50.00 mm |
Projection: |
3.230 mm |
Shank Diameter: |
12.000 mm |
Centerline Offset: |
5.400 mm |
Offset: |
1.850 mm |
Radius: |
0.050 mm |
Angle per Side: |
30 |
Included Angle: |
60 |
Face Dimension: |
0.24 mm |
Neck Diameter: |
8.080 mm |
Overall Length: |
83.0 mm |
Split Length: |
6.90 mm |
Thread Size: |
1.0-3.5 mm |
Tooth Width: |
3.710 mm |
TPI: |
1.0-3.5 mm |
Metric: |
Y |
