MICRO 100

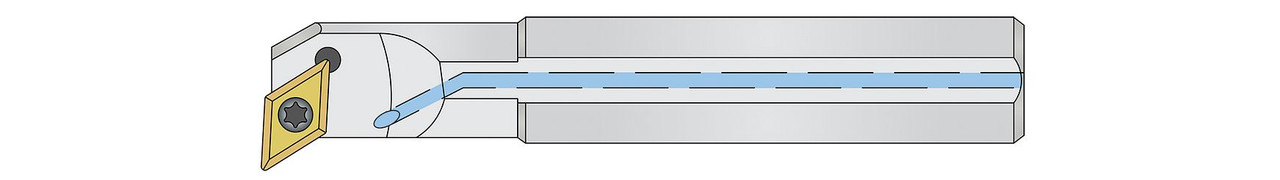

RIGHT HAND 0.7750" MIN BORE DIA X 0.6250" (5/8) SHANK DIA X 5.90" OVERALL LENGTH ,20-0935
- SKU:
- 20-0935
- MPN:
- 20-0935
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.7750" MIN BORE DIA X 0.6250" (5/8) SHANK DIA X 5.90" OVERALL LENGTH - INDEXABLE - PROFILING TOOL RIGHT HAND,20-0935
View AllClose
Additional Information
Min Bore Diameter: |
0.8680" |
Head Width: |
0.775" |
Hand Direction: |
right hand |
Coating: |
UN |
Shank Diameter: |
0.6250" (5/8) |
Centerline Offset: |
0.4330" |
Indexable K Angle: |
93 |
Indexable Nomenclature: |
A10M SDUCR 2 |
Inser Style: |
DCMT 21.51 |
Micro 100 Insert Part: |
50-1200 |
Overall Length: |
5.90" |
Metric: |
N |
