MICRO 100
RIGHT HAND 0.7750" MIN BORE DIA X 0.6250" (5/8) SHANK DIA X 5.90" OVERALL LENGTH ,20-0829
- SKU:
- 20-0829
- MPN:
- 20-0829
- Availability:
- 28
- Shipping:
- Calculated at Checkout
Description

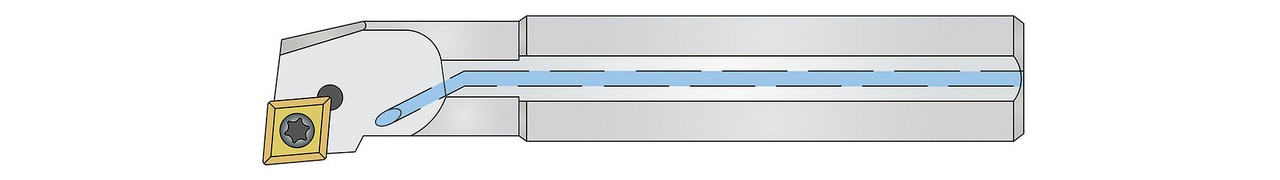

0.7750" MIN BORE DIA X 0.6250" (5/8) SHANK DIA X 5.90" OVERALL LENGTH - INDEXABLE - BORING TOOL RIGHT HAND,20-0829
View AllClose
Additional Information
Min Bore Diameter: |
0.7750" |
Head Width: |
0.775" |
Hand Direction: |
right hand |
Coating: |
UN |
Shank Diameter: |
0.6250" (5/8) |
Centerline Offset: |
0.4330" |
Indexable Nomenclature: |
A10M SCLCR 2 |
Inser Style: |
CCMT 21.51 |
Micro 100 Insert Part: |
50-1100 |
Overall Length: |
5.90" |
Metric: |
N |
