MICRO 100

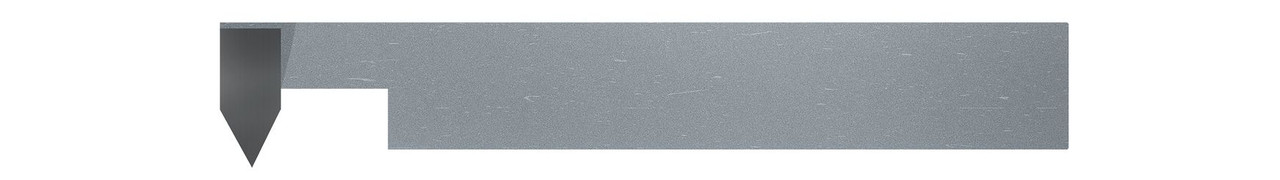

RIGHT HAND - 0.5750" MIN BORE DIA X 0.875" (7/8) MAX BORE DEPTH X 3.52" OVERALL LENGTH X 0.5000" (1/2) RADIUS ,IDRT-80
- SKU:
- IDRT-80
- MPN:
- IDRT-80
- Availability:
- 16
- Shipping:
- Calculated at Checkout
Description
0.5750" MIN BORE DIA X 0.875" (7/8) MAX BORE DEPTH X 0.5000" (1/2) SHANK HEIGHT X 3.52" OVERALL LENGTH X 0.5000" (1/2) RADIUS - CARBIDE TIPPED UN BRAZED RIGHT HAND,IDRT-80
View AllClose
Additional Information
Min Bore Diameter: |
0.5750" |
Head Width: |
0.575" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.875" (7/8) |
Offset: |
0.075" |
Radius: |
0.5000" (1/2) |
Neck Length: |
0.750" (3/4) |
Overall Length: |
3.52" |
Shank Height: |
0.5000" (1/2) |
Shank Width: |
0.5000" (1/2) |
Metric: |
N |
