MICRO 100

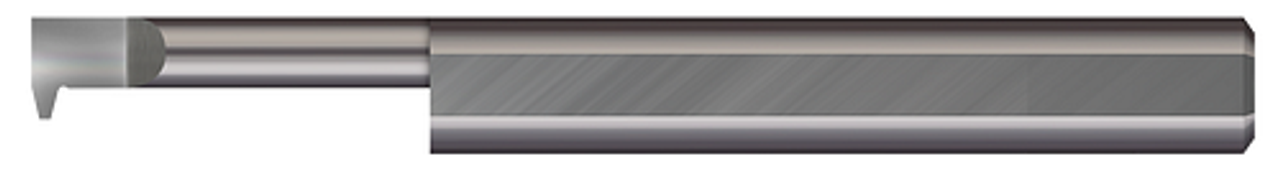

Right Hand - 0.5120" (13 mm) Min Bore DIA x 2.000" (2) Max Bore Depth x 0.1350" Tooth Width x 0.1200" Projection x 3.00" (3) OAL
- SKU:
- SAT-2000-8
- MPN:
- SAT-2000-8
- Availability:
- 16
- Shipping:
- Calculated at Checkout
Description
0.5120" (13 mm) Min Bore DIA x 2.000" (2) Max Bore Depth x 0.1350" Tooth Width x 0.1200" Projection x 0.5000" (1/2) Shank DIA x 3.00" (3) Overall Length - Carbide ACME Thread Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.5120" (13 mm) |
Head Width: |
0.490" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
2.000" (2) |
Projection: |
0.1200" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2400" |
Offset: |
0.068" |
Face Dimension: |
0.250" (1/4) |
Flat Width: |
0.048" |
Neck Diameter: |
0.3650" |
Overall Length: |
3.00" (3) |
Split Length: |
0.275" |
Tooth Width: |
0.1350" |
TPI: |
8 |
Metric: |
N |
