MICRO 100

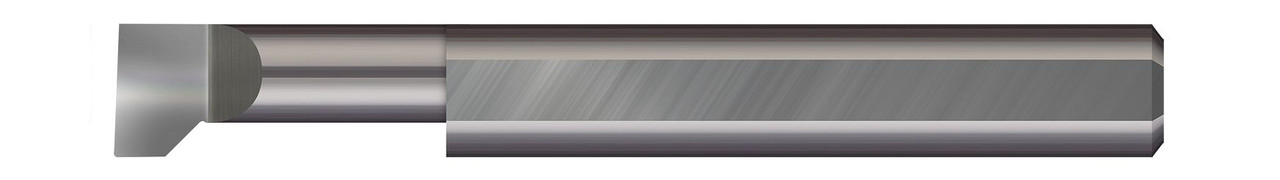

RIGHT HAND - 0.5000" (1/2) MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1560" (5/32) TOOTH WIDTH X 0.1250" (1/8) PROJECTION X 3.00" (3) OVERALL LENGTH X 0.010" CORNER RADIUS ,LTR-500-16
- SKU:
- LTR-500-16
- MPN:
- LTR-500-16
- Availability:
- 33
- Shipping:
- Calculated at Checkout
Description
0.5000" (1/2) MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1560" (5/32) TOOTH WIDTH X 0.1250" (1/8) PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.010" CORNER RADIUS - CARBIDE THREAD RELIEF RIGHT HAND,LTR-500-16
View AllClose
Additional Information
Min Bore Diameter: |
0.5220" |
Head Width: |
0.500" (1/2) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1250" (1/8) |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2500" (1/4) |
Corner Radius: |
0.010" |
Face Dimension: |
0.250" (1/4) |
Neck Diameter: |
0.3700" |
Overall Length: |
3.00" (3) |
Split Length: |
0.320" |
Tooth Width: |
0.1560" (5/32) |
Metric: |
N |
