MICRO 100

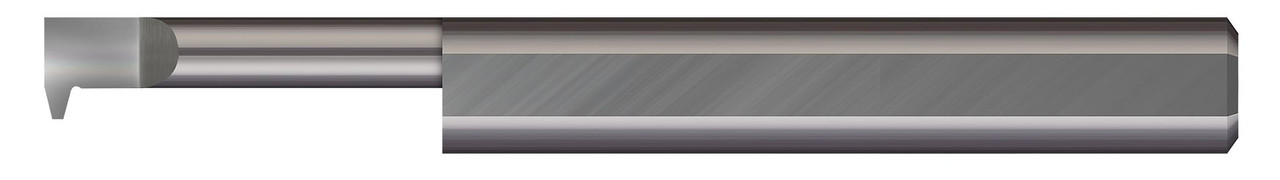

RIGHT HAND - 0.4900" MIN BORE DIA X 2.000" (2) MAX BORE DEPTH X 0.1280" TOOTH WIDTH X 0.1200" PROJECTION X 3.00" (3) OVERALL LENGTH - ALTIN COATED,IAT-2000-8X
- SKU:
- IAT-2000-8X
- MPN:
- IAT-2000-8X
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.4900" MIN BORE DIA X 2.000" (2) MAX BORE DEPTH X 0.1280" TOOTH WIDTH X 0.1200" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH - CARBIDE ACME THREAD RIGHT HAND, ALTIN COATED,IAT-2000-8X
View AllClose
Additional Information
Min Bore Diameter: |
0.5120" (13 mm) |
Head Width: |
0.490" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
2.000" (2) |
Projection: |
0.1200" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2400" |
Offset: |
0.064" |
Face Dimension: |
0.250" (1/4) |
Flat Width: |
0.041" |
Neck Diameter: |
0.3650" |
Overall Length: |
3.00" (3) |
Split Length: |
0.275" |
Tooth Width: |
0.1280" |
TPI: |
8 |
Metric: |
N |
