MICRO 100

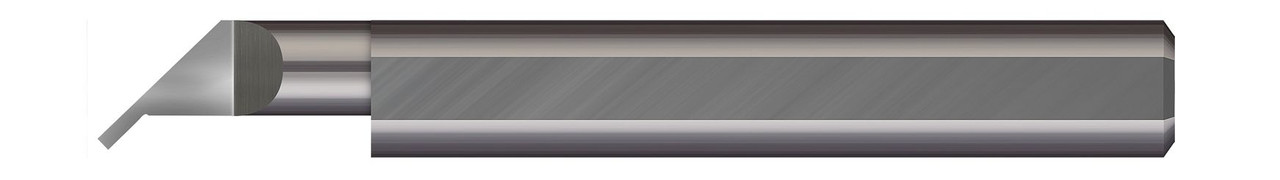

RIGHT HAND - 0.4900" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.0620" (1/16) TOOTH WIDTH X 0.1250" (1/8) PROJECTION X 3.00" (3) OVERALL LENGTH X 0.0310" (1/32) RADIUS ,UC-50062-24
- SKU:
- UC-50062-24
- MPN:
- UC-50062-24
- Availability:
- 14
- Shipping:
- Calculated at Checkout
Description
0.4900" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.0620" (1/16) TOOTH WIDTH X 0.1250" (1/8) PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.0310" (1/32) RADIUS - CARBIDE UNDERCUT SQUARE RIGHT HAND,UC-50062-24
View AllClose
Additional Information
Min Bore Diameter: |
0.5120" (13 mm) |
Head Width: |
0.490" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.500" (1-1/2) |
Projection: |
0.1250" (1/8) |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2400" |
Radius: |
0.0310" (1/32) |
Angled Projection: |
0.180" |
Face Dimension: |
0.250" (1/4) |
Neck Diameter: |
0.3650" |
Overall Length: |
3.00" (3) |
Split Length: |
0.500" (1/2) |
Tooth Width: |
0.0620" (1/16) |
Metric: |
N |
