MICRO 100

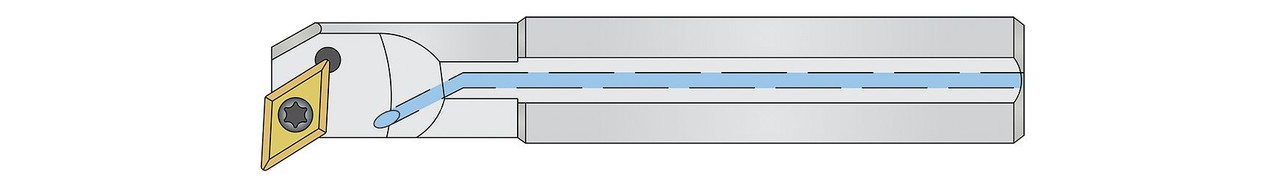

RIGHT HAND 0.4250" MIN BORE DIA X 0.3125" (5/16) SHANK DIA X 3.90" OVERALL LENGTH ,20-0901
- SKU:
- 20-0901
- MPN:
- 20-0901
- Availability:
- 18
- Shipping:
- Calculated at Checkout
Description
0.4250" MIN BORE DIA X 0.3125" (5/16) SHANK DIA X 3.90" OVERALL LENGTH - INDEXABLE - PROFILING TOOL RIGHT HAND,20-0901
View AllClose
Additional Information
Min Bore Diameter: |
0.5630" |
Head Width: |
0.425" |
Hand Direction: |
right hand |
Coating: |
UN |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1970" |
Indexable K Angle: |
107.5 |
Indexable Nomenclature: |
A05H SDQCR 2 |
Inser Style: |
DCMT 21.51 |
Micro 100 Insert Part: |
50-1200 |
Overall Length: |
3.90" |
Metric: |
N |
