MICRO 100

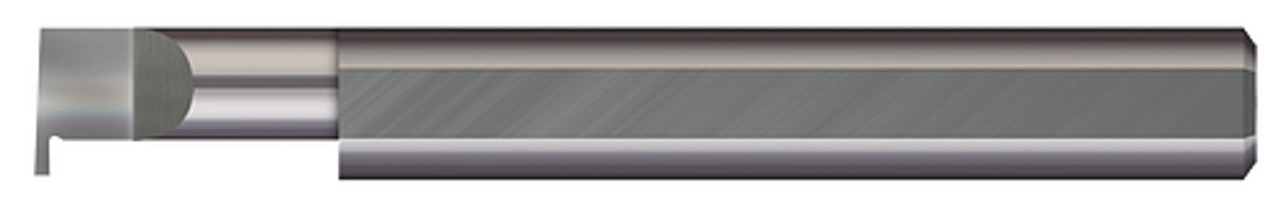

Right Hand - 0.3970" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0870" Tooth Width x 0.1000" Projection x 2.50" (2-1/2) OAL
- SKU:
- RR-087-6
- MPN:
- RR-087-6
- Availability:
- 27
- Shipping:
- Calculated at Checkout
Description
0.3970" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0870" Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Retaining Ring Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3970" |
Head Width: |
0.375" (3/8) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.1000" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1875" (3/16) |
Face Dimension: |
0.188" (3/16) |
Neck Diameter: |
0.2700" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.210" |
Tooth Width: |
0.0870" |
Metric: |
N |
