MICRO 100

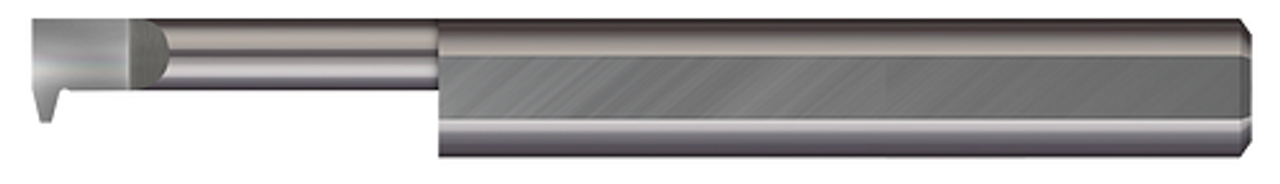

Right Hand - 0.3950" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.1100" Projection x 3.00" (3) OAL
- SKU:
- IAT2-750-10
- MPN:
- IAT2-750-10
- Availability:
- 23
- Shipping:
- Calculated at Checkout
Description
0.3950" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.1100" Projection x 0.5000" (1/2) Shank DIA x 3.00" (3) Overall Length - Carbide ACME Thread Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.4000" |
Head Width: |
0.378" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.1200" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.1280" |
Offset: |
0.060" |
Flat Width: |
0.032" |
Neck Diameter: |
0.2530" |
Overall Length: |
3.00" (3) |
TPI: |
10 |
Metric: |
N |
