MICRO 100

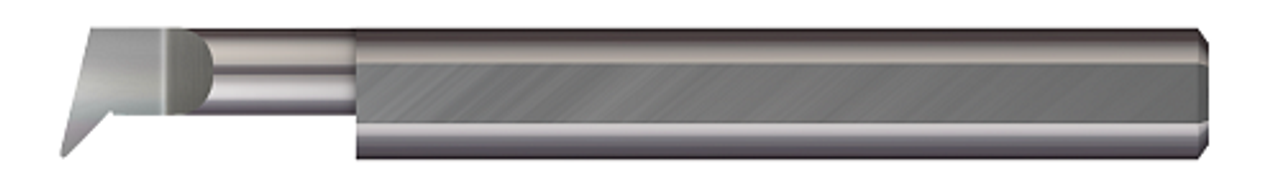

Right Hand - 0.3820" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.1100" Projection x 2.50" (2-1/2) OAL x 0.008" Corner Radius
- SKU:
- PA8-3601000
- MPN:
- PA8-3601000
- Availability:
- 9
- Shipping:
- Calculated at Checkout
Description
0.3820" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.1100" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length x 0.008" Corner Radius - Carbide Standard - Axial and Radial Profiling Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3820" |
Head Width: |
0.360" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1100" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1725" |
Corner Radius: |
0.008" |
Neck Diameter: |
0.2500" (1/4) |
Overall Length: |
2.50" (2-1/2) |
Metric: |
N |
