MICRO 100

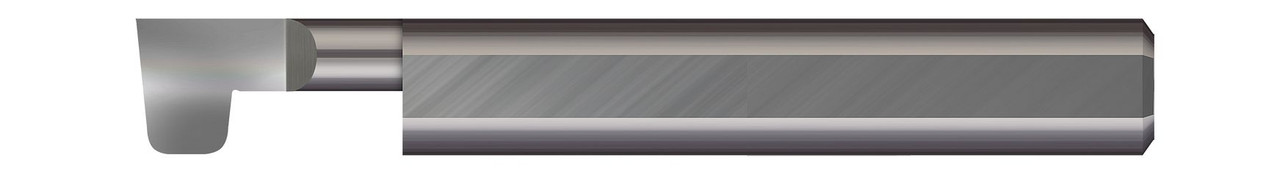

RIGHT HAND - 0.3750" (3/8) MIN BORE DIA X 0.812" (13/16) MAX BORE DEPTH X 0.2080" TOOTH WIDTH X 0.1150" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0350" RADIUS ,OR-208-13
- SKU:
- OR-208-13
- MPN:
- OR-208-13
- Availability:
- 8
- Shipping:
- Calculated at Checkout
Description
0.3750" (3/8) MIN BORE DIA X 0.812" (13/16) MAX BORE DEPTH X 0.2080" TOOTH WIDTH X 0.1150" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0350" RADIUS - CARBIDE FACE GROOVING RIGHT HAND,OR-208-13
View AllClose
Additional Information
Min Bore Diameter: |
0.3970" |
Head Width: |
0.375" (3/8) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.812" (13/16) |
Projection: |
0.1150" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1875" (3/16) |
Radius: |
0.0350" |
Face Dimension: |
0.188" (3/16) |
Neck Diameter: |
0.2550" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.360" |
Tooth Width: |
0.2080" |
Metric: |
N |
