MICRO 100

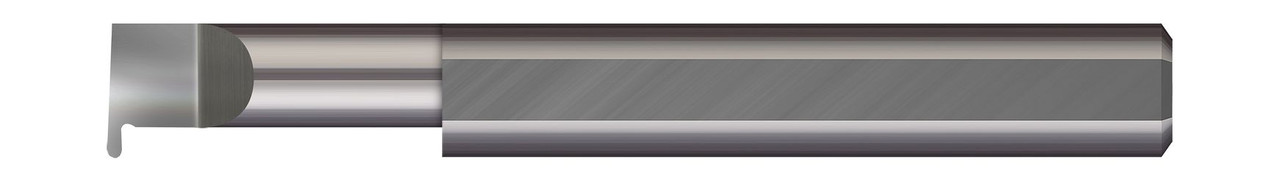

RIGHT HAND - 0.3750" (3/8) MIN BORE DIA X 0.250" (1/4) MAX BORE DEPTH X 0.0460" TOOTH WIDTH X 0.1000" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0230" RADIUS ,FR-046-4

SKU:
FR-046-4
MPN:
FR-046-4
Availability:
11
Shipping:
Calculated at Checkout
$68.00

Description

0.3750" (3/8) MIN BORE DIA X 0.250" (1/4) MAX BORE DEPTH X 0.0460" TOOTH WIDTH X 0.1000" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0230" RADIUS - CARBIDE FULL RADIUS GROOVING RIGHT HAND,FR-046-4
View AllClose

Additional Information

Min Bore Diameter:
0.3970"
Head Width:
0.375" (3/8)
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.250" (1/4)
Projection:
0.1000"
Shank Diameter:
0.3750" (3/8)
Centerline Offset:
0.1875" (3/16)
Radius:
0.0230"
Face Dimension:
0.188" (3/16)
Neck Diameter:
0.2700"
Overall Length:
2.50" (2-1/2)
Split Length:
0.185"
Tooth Width:
0.0460"
Metric:
N
