MICRO 100

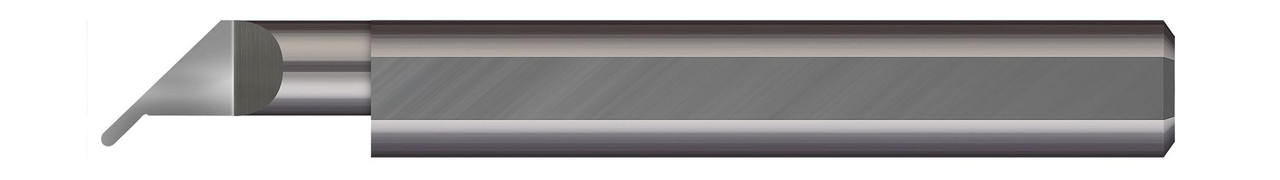

RIGHT HAND - 0.3650" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1250" (1/8) TOOTH WIDTH X 0.0950" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0625" (1/16) RADIUS ,UP-37125-16
- SKU:
- UP-37125-16
- MPN:
- UP-37125-16
- Availability:
- 22
- Shipping:
- Calculated at Checkout
Description
0.3650" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1250" (1/8) TOOTH WIDTH X 0.0950" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0625" (1/16) RADIUS - CARBIDE UNDERCUT FULL RADIUS RIGHT HAND,UP-37125-16
View AllClose
Additional Information
Min Bore Diameter: |
0.3870" |
Head Width: |
0.365" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.0950" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1775" |
Radius: |
0.0625" (1/16) |
Angled Projection: |
0.171" |
Face Dimension: |
0.188" (3/16) |
Neck Diameter: |
0.2700" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.375" (3/8) |
Tooth Width: |
0.1250" (1/8) |
Metric: |
N |
