MICRO 100

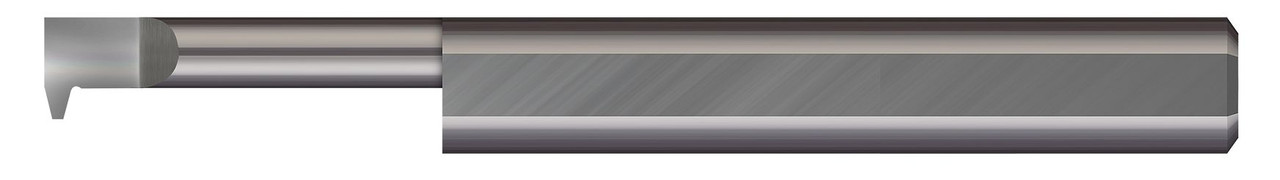

RIGHT HAND - 0.3600" MIN BORE DIA X 1.800" MAX BORE DEPTH X 0.0970" TOOTH WIDTH X 0.0850" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH ,IAT-1800-12
- SKU:
- IAT-1800-12
- MPN:
- IAT-1800-12
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.3600" MIN BORE DIA X 1.800" MAX BORE DEPTH X 0.0970" TOOTH WIDTH X 0.0850" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH - CARBIDE ACME THREAD RIGHT HAND,IAT-1800-12
View AllClose
Additional Information
Min Bore Diameter: |
0.3820" |
Head Width: |
0.360" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.800" |
Projection: |
0.0850" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1725" |
Offset: |
0.049" |
Face Dimension: |
0.188" (3/16) |
Flat Width: |
0.028" |
Neck Diameter: |
0.2700" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.210" |
Tooth Width: |
0.0970" |
TPI: |
12 |
Metric: |
N |
