MICRO 100
Right Hand - 0.3340" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0330" Tooth Width x 0.1000" Projection x 2.50" (2-1/2) OAL
- SKU:
- RR-033-1000-312
- MPN:
- RR-033-1000-312
- Availability:
- 25
- Shipping:
- Calculated at Checkout
Description

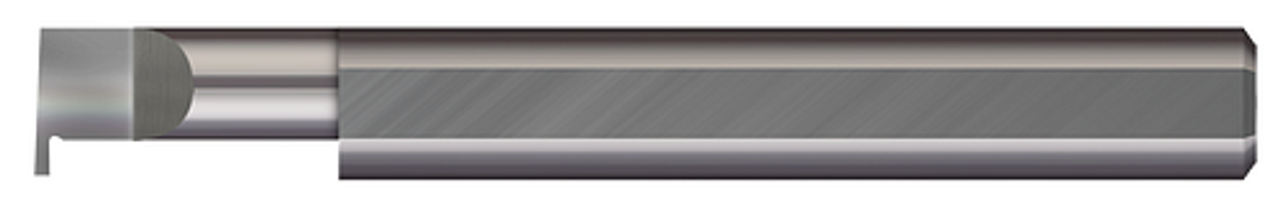

0.3340" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0330" Tooth Width x 0.1000" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Retaining Ring Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3340" |
Head Width: |
0.313" (5/16) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1000" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1563" (5/32) |
Neck Diameter: |
0.3125" (5/16) |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.0330" |
Metric: |
N |
