MICRO 100
Right Hand - 0.3250" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0500" Tooth Width x 0.0830" Projection x 2.50" (2-1/2) OAL x 0.0250" Radius - AlTiN Coated
- SKU:
- UC-31050-8X
- MPN:
- UC-31050-8X
- Availability:
- 16
- Shipping:
- Calculated at Checkout
Description

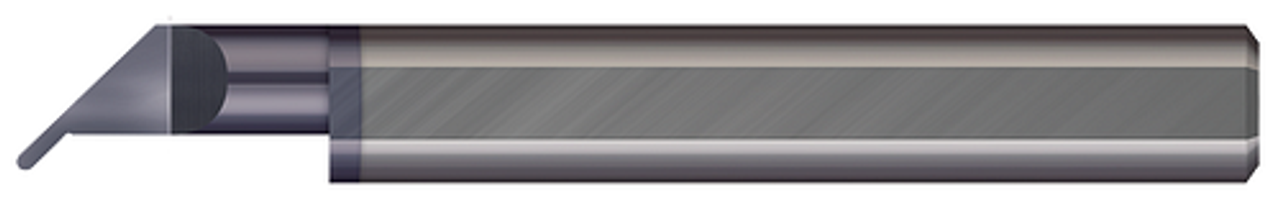

0.3250" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0500" Tooth Width x 0.0830" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0250" Radius - Carbide Undercut Square Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.3250" |
Head Width: |
0.303" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0830" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1467" |
Radius: |
0.0250" |
Angled Projection: |
0.120" |
Face Dimension: |
0.156" (5/32) |
Neck Diameter: |
0.2200" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.312" (5/16) |
Tooth Width: |
0.0500" |
Metric: |
N |
