MICRO 100

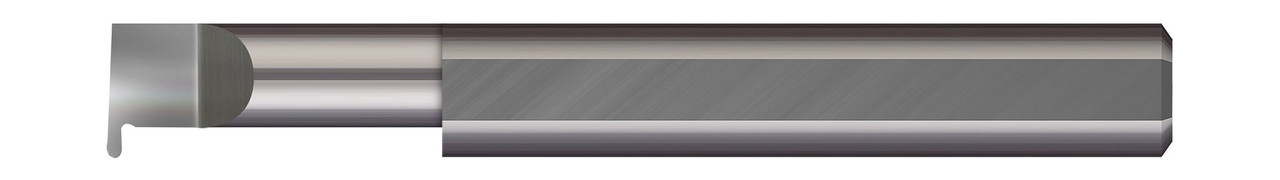

RIGHT HAND - 0.3120" (5/16) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0330" TOOTH WIDTH X 0.1000" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0165" RADIUS - ALTIN COATED,FR-033-6X
- SKU:
- FR-033-6X
- MPN:
- FR-033-6X
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.3120" (5/16) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0330" TOOTH WIDTH X 0.1000" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0165" RADIUS - CARBIDE FULL RADIUS GROOVING RIGHT HAND, ALTIN COATED,FR-033-6X
View AllClose
Additional Information
Min Bore Diameter: |
0.3340" |
Head Width: |
0.312" (5/16) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.1000" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1563" (5/32) |
Radius: |
0.0165" |
Face Dimension: |
0.156" (5/32) |
Neck Diameter: |
0.2070" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.160" |
Tooth Width: |
0.0330" |
Metric: |
N |
