MICRO 100

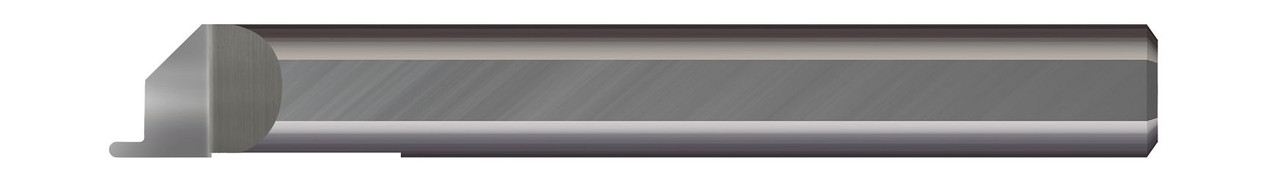

RIGHT HAND - 0.3120" (5/16) MIN BORE DIA X 0.255" MAX BORE DEPTH X 0.0500" TOOTH WIDTH X 0.0500" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0250" RADIUS ,FGF-312-050
- SKU:
- FGF-312-050
- MPN:
- FGF-312-050
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.3120" (5/16) MIN BORE DIA X 0.255" MAX BORE DEPTH X 0.0500" TOOTH WIDTH X 0.0500" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0250" RADIUS - CARBIDE FACE GROOVING - FULL RADIUS RIGHT HAND,FGF-312-050
View AllClose
Additional Information
Min Bore Diameter: |
0.3120" (5/16) |
Head Width: |
0.312" (5/16) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.255" |
Projection: |
0.0500" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1563" (5/32) |
Radius: |
0.0250" |
Face Dimension: |
0.156" (5/32) |
Overall Length: |
2.50" (2-1/2) |
Overall Reach: |
0.255" |
Split Length: |
0.225" |
Tooth Width: |
0.0500" |
Metric: |
N |
