MICRO 100

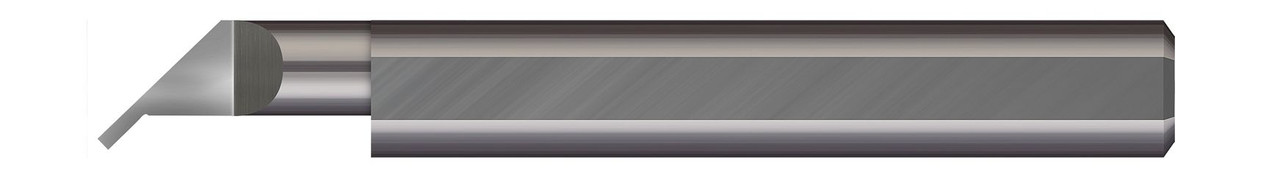

RIGHT HAND - 0.3030" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.0620" (1/16) TOOTH WIDTH X 0.0830" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0310" (1/32) RADIUS ,UC-31062-20
- SKU:
- UC-31062-20
- MPN:
- UC-31062-20
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.3030" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.0620" (1/16) TOOTH WIDTH X 0.0830" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0310" (1/32) RADIUS - CARBIDE UNDERCUT SQUARE RIGHT HAND,UC-31062-20
View AllClose
Additional Information
Min Bore Diameter: |
0.3250" |
Head Width: |
0.303" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.0830" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1467" |
Radius: |
0.0310" (1/32) |
Angled Projection: |
0.120" |
Face Dimension: |
0.156" (5/32) |
Neck Diameter: |
0.2200" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.312" (5/16) |
Tooth Width: |
0.0620" (1/16) |
Metric: |
N |
