MICRO 100

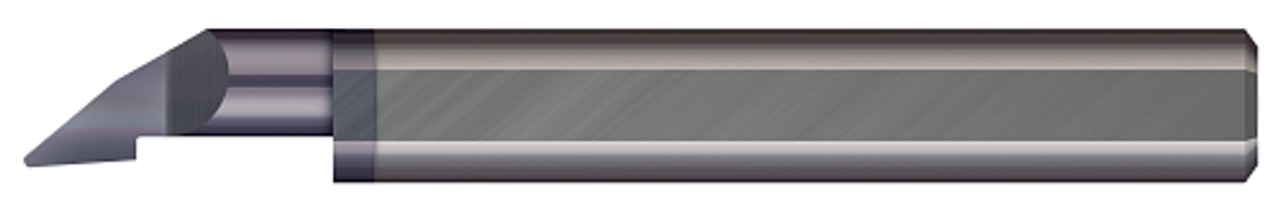

Right Hand - 0.2800" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0300" Projection x 2.50" (2-1/2) OAL x 0.0080" Radius - AlTiN Coated
- SKU:
- PF8-260750X
- MPN:
- PF8-260750X
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.2800" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0300" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0080" Radius - Carbide Axial Profiling Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.2800" |
Head Width: |
0.260" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0300" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1038" |
Radius: |
0.0080" |
Neck Diameter: |
0.2300" |
Overall Length: |
2.50" (2-1/2) |
Metric: |
N |
