MICRO 100

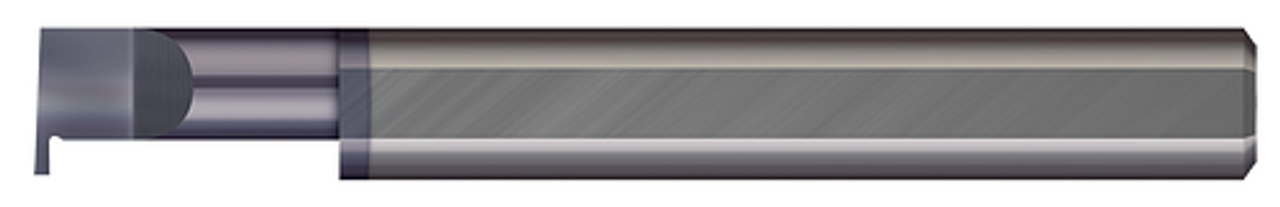

Right Hand - 0.2720" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0870" Tooth Width x 0.0500" Projection x 2.50" (2-1/2) OAL - AlTiN Coated
- SKU:
- RR-087-500-250X
- MPN:
- RR-087-500-250X
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.2720" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0870" Tooth Width x 0.0500" Projection x 0.2500" (1/4) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Retaining Ring Grooving Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.2720" |
Head Width: |
0.250" (1/4) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0500" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.1250" (1/8) |
Neck Diameter: |
0.2500" (1/4) |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.0870" |
Metric: |
N |
