MICRO 100

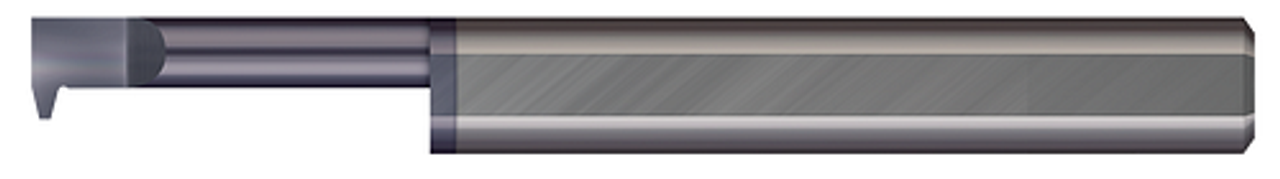

Right Hand - 0.2570" Min Bore DIA x 1.750" (1-3/4) Max Bore Depth x 0.0890" Tooth Width x 0.0700" Projection x 2.50" (2-1/2) OAL - AlTiN Coated
- SKU:
- SAT-1750-14X
- MPN:
- SAT-1750-14X
- Availability:
- 20
- Shipping:
- Calculated at Checkout
Description
0.2570" Min Bore DIA x 1.750" (1-3/4) Max Bore Depth x 0.0890" Tooth Width x 0.0700" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide ACME Thread Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.2570" |
Head Width: |
0.235" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.750" (1-3/4) |
Projection: |
0.0700" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0788" |
Offset: |
0.045" |
Face Dimension: |
0.156" (5/32) |
Flat Width: |
0.028" |
Neck Diameter: |
0.1600" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.210" |
Tooth Width: |
0.0890" |
TPI: |
14 |
Metric: |
N |
