MICRO 100

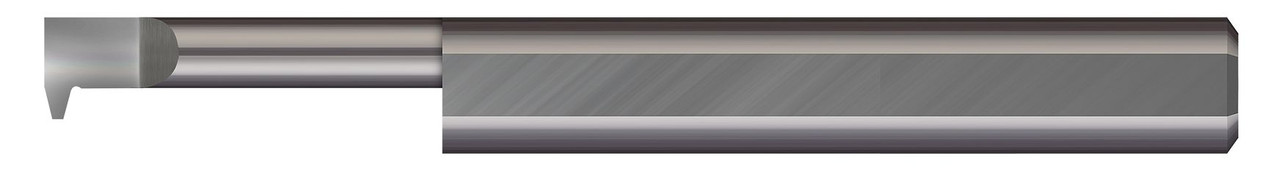

RIGHT HAND - 0.2550" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0600" TOOTH WIDTH X 0.0700" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH ,IAT-750-14
- SKU:
- IAT-750-14
- MPN:
- IAT-750-14
- Availability:
- 21
- Shipping:
- Calculated at Checkout
Description
0.2550" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0600" TOOTH WIDTH X 0.0700" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH - CARBIDE ACME THREAD RIGHT HAND,IAT-750-14
View AllClose
Additional Information
Min Bore Diameter: |
0.2770" |
Head Width: |
0.255" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0700" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0988" |
Offset: |
0.030" |
Face Dimension: |
0.156" (5/32) |
Flat Width: |
0.024" |
Neck Diameter: |
0.1800" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.210" |
Tooth Width: |
0.0600" |
TPI: |
14 |
Metric: |
N |
