MICRO 100

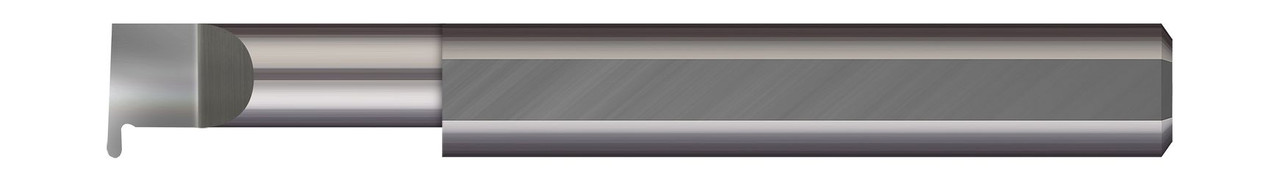

RIGHT HAND - 0.2500" (1/4) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.0150" (1/64) RADIUS - ALTIN COATED,FR-030-6X
- SKU:
- FR-030-6X
- MPN:
- FR-030-6X
- Availability:
- 6
- Shipping:
- Calculated at Checkout
Description
0.2500" (1/4) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.0150" (1/64) RADIUS - CARBIDE FULL RADIUS GROOVING RIGHT HAND, ALTIN COATED,FR-030-6X
View AllClose
Additional Information
Min Bore Diameter: |
0.2720" |
Head Width: |
0.250" (1/4) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.0500" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.1250" (1/8) |
Radius: |
0.0150" (1/64) |
Face Dimension: |
0.125" (1/8) |
Neck Diameter: |
0.1950" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.150" |
Tooth Width: |
0.0300" |
Metric: |
N |
