MICRO 100

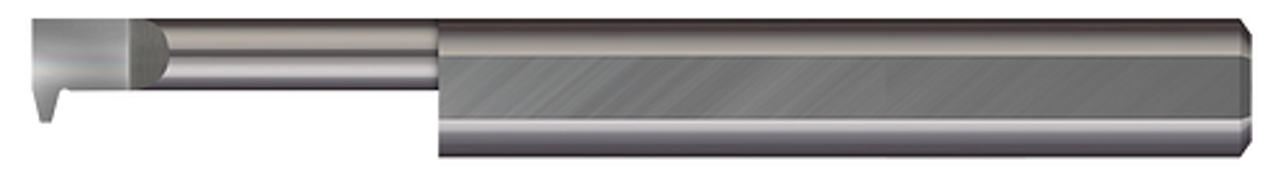

Right Hand - 0.2410" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0700" Projection x 2.50" (2-1/2) OAL
- SKU:
- IAT2-500-14
- MPN:
- IAT2-500-14
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.2410" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0700" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide ACME Thread Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.2410" |
Head Width: |
0.219" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0700" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0627" |
Offset: |
0.043" |
Flat Width: |
0.024" |
Neck Diameter: |
0.1440" |
Overall Length: |
2.50" (2-1/2) |
TPI: |
14 |
Metric: |
N |
