MICRO 100

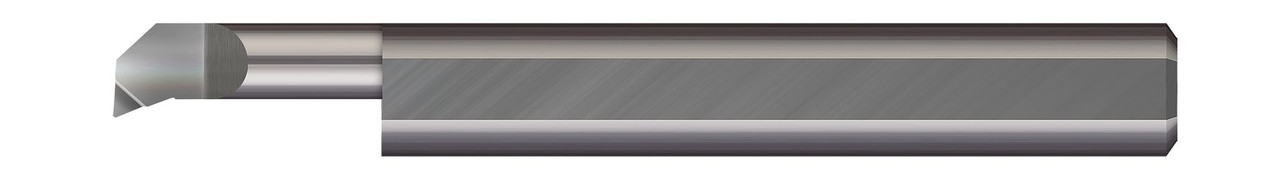

RIGHT HAND - 0.2300" MIN BORE DIA X 1.600" MAX BORE DEPTH X 0.1150" TOOTH WIDTH X 0.0400" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.006" CORNER RADIUS - ALTIN COATED,PBT-2301600X
- SKU:
- PBT-2301600X
- MPN:
- PBT-2301600X
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.2300" MIN BORE DIA X 1.600" MAX BORE DEPTH X 0.1150" TOOTH WIDTH X 0.0400" PROJECTION X 0.3125" (5/16) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.006" CORNER RADIUS - CARBIDE QUICK CHANGE - BORING TOP RAKE CHIPBREAKER RIGHT HAND, ALTIN COATED,PBT-2301600X
View AllClose
Additional Information
Min Bore Diameter: |
0.2500" (1/4) |
Head Width: |
0.230" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.600" |
Projection: |
0.0400" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0738" |
Offset: |
0.095" |
Corner Radius: |
0.006" |
Face Dimension: |
0.157" |
Neck Diameter: |
0.1900" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.1150" |
Metric: |
N |
