MICRO 100

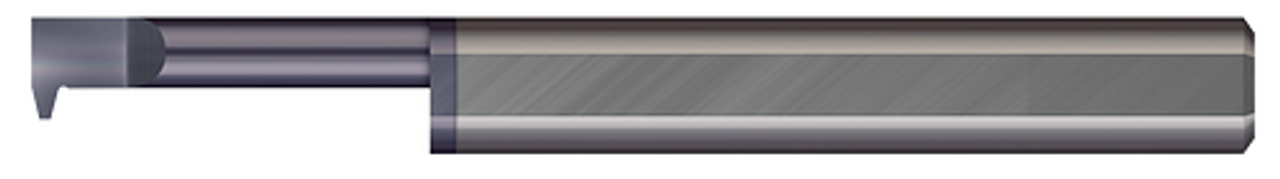

Right Hand - 0.2220" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0470" (3/64) Tooth Width x 0.0450" Projection x 2.50" (2-1/2) OAL - AlTiN Coated
- SKU:
- SAT-750-16X
- MPN:
- SAT-750-16X
- Availability:
- 19
- Shipping:
- Calculated at Checkout
Description
0.2220" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0470" (3/64) Tooth Width x 0.0450" Projection x 0.2500" (1/4) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide ACME Thread Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.2220" |
Head Width: |
0.200" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0450" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0750" |
Offset: |
0.024" |
Face Dimension: |
0.125" (1/8) |
Flat Width: |
0.024" |
Neck Diameter: |
0.1500" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.175" |
Tooth Width: |
0.0470" (3/64) |
TPI: |
16 |
Metric: |
N |
