MICRO 100

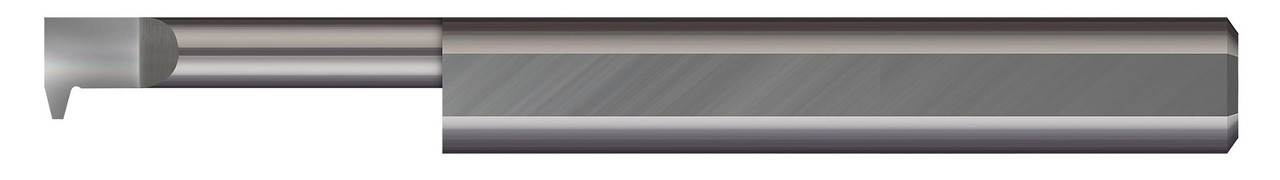

RIGHT HAND - 0.2000" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0470" (3/64) TOOTH WIDTH X 0.0450" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH - ALTIN COATED,IAT-600-16X
- SKU:
- IAT-600-16X
- MPN:
- IAT-600-16X
- Availability:
- 6
- Shipping:
- Calculated at Checkout
Description
0.2000" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0470" (3/64) TOOTH WIDTH X 0.0450" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH - CARBIDE ACME THREAD RIGHT HAND, ALTIN COATED,IAT-600-16X
View AllClose
Additional Information
Min Bore Diameter: |
0.2220" |
Head Width: |
0.200" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.600" |
Projection: |
0.0450" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0750" |
Offset: |
0.024" |
Face Dimension: |
0.125" (1/8) |
Flat Width: |
0.021" |
Neck Diameter: |
0.1500" |
Overall Length: |
2.50" (2-1/2) |
Split Length: |
0.175" |
Tooth Width: |
0.0470" (3/64) |
TPI: |
16 |
Metric: |
N |
