MICRO 100

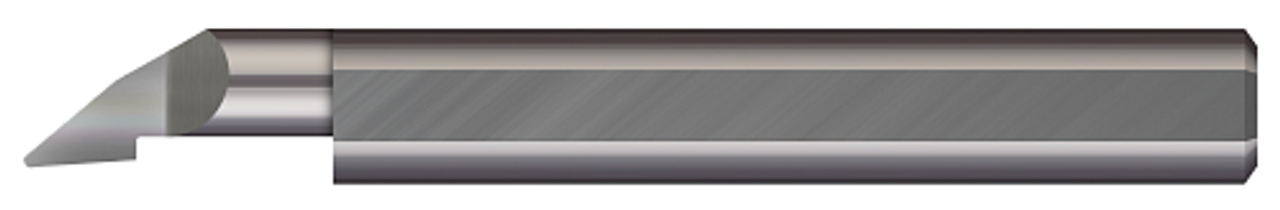

Right Hand - 0.1960" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Projection x 2.50" (2-1/2) OAL x 0.0080" Radius
- SKU:
- PF-180500
- MPN:
- PF-180500
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.1960" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Projection x 0.2500" (1/4) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0080" Radius - Carbide Axial Profiling Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1960" (5 mm) |
Head Width: |
0.180" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0300" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0550" |
Radius: |
0.0080" |
Overall Length: |
2.50" (2-1/2) |
Metric: |
N |
