MICRO 100

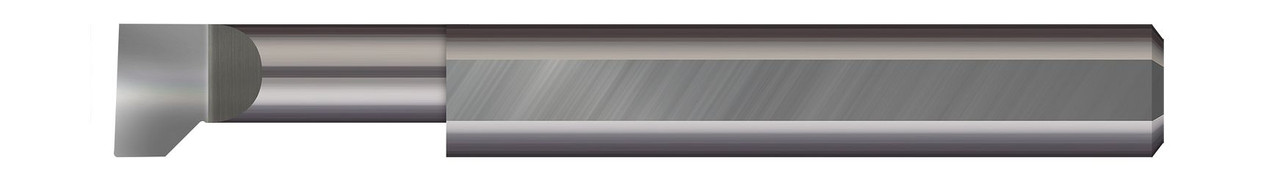

RIGHT HAND - 0.1875" (3/16) MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0780" (5/64) TOOTH WIDTH X 0.0400" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.005" CORNER RADIUS - ALTIN COATED,LTR-187-12X
- SKU:
- LTR-187-12X
- MPN:
- LTR-187-12X
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.1875" (3/16) MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0780" (5/64) TOOTH WIDTH X 0.0400" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.005" CORNER RADIUS - CARBIDE THREAD RELIEF RIGHT HAND, ALTIN COATED,LTR-187-12X
View AllClose
Additional Information
Min Bore Diameter: |
0.2050" |
Head Width: |
0.188" (3/16) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0400" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0938" |
Corner Radius: |
0.005" |
Face Dimension: |
0.094" |
Neck Diameter: |
0.1430" |
Overall Length: |
2.00" (2) |
Split Length: |
0.170" |
Tooth Width: |
0.0780" (5/64) |
Metric: |
N |
