MICRO 100

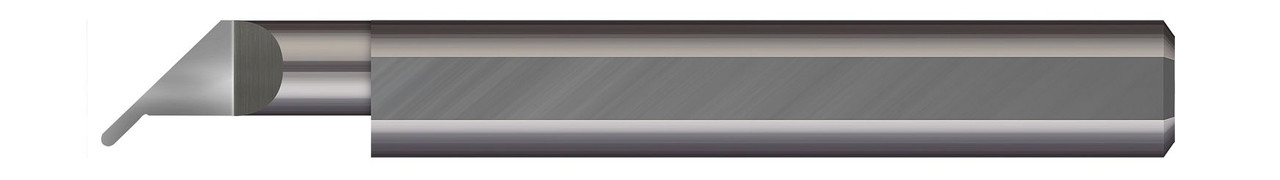

RIGHT HAND - 0.1800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.0150" (1/64) RADIUS ,UP-18030-8
- SKU:
- UP-18030-8
- MPN:
- UP-18030-8
- Availability:
- 21
- Shipping:
- Calculated at Checkout
Description
0.1800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.0150" (1/64) RADIUS - CARBIDE UNDERCUT FULL RADIUS RIGHT HAND,UP-18030-8
View AllClose
Additional Information
Min Bore Diameter: |
0.1980" |
Head Width: |
0.180" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0500" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0862" |
Radius: |
0.0150" (1/64) |
Angled Projection: |
0.079" |
Face Dimension: |
0.094" |
Neck Diameter: |
0.1300" |
Overall Length: |
2.00" (2) |
Split Length: |
0.188" (3/16) |
Tooth Width: |
0.0300" |
Metric: |
N |
