MICRO 100

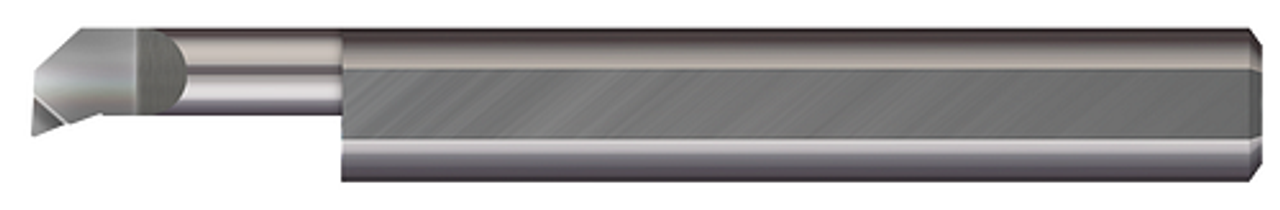

Right Hand - 0.1760" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0740" Tooth Width x 0.0250" Projection x 2.00" (2) OAL x 0.006" Corner Radius
- SKU:
- PBT-160750
- MPN:
- PBT-160750
- Availability:
- 21
- Shipping:
- Calculated at Checkout
Description
0.1760" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0740" Tooth Width x 0.0250" Projection x 0.1875" (3/16) Shank DIA x 2.00" (2) Overall Length x 0.006" Corner Radius - Carbide Quick Change - Boring Top Rake Chipbreaker Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1760" |
Head Width: |
0.160" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0250" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0663" |
Offset: |
0.068" |
Corner Radius: |
0.006" |
Face Dimension: |
0.095" |
Neck Diameter: |
0.1350" |
Overall Length: |
2.00" (2) |
Tooth Width: |
0.0740" |
Metric: |
N |
