MICRO 100

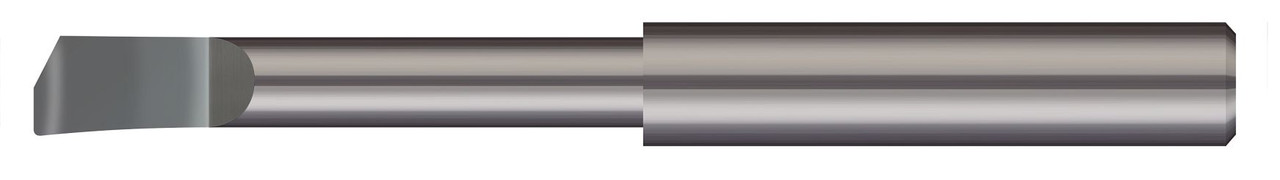

RIGHT HAND - 0.1400" (9/64) MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 2.00" (2) OVERALL LENGTH X 0.0040" RADIUS ,HBBC-1501000-004
- SKU:
- HBBC-1501000-004
- MPN:
- HBBC-1501000-004
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.1400" (9/64) MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.0040" RADIUS - CARBIDE BORING HELICAL BACK RAKE RIGHT HAND,HBBC-1501000-004
View AllClose
Additional Information
Min Bore Diameter: |
0.1400" (9/64) |
Head Width: |
0.150" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0750" |
Radius: |
0.0040" |
Face Dimension: |
0.094" |
Neck Diameter: |
0.1300" |
Overall Length: |
2.00" (2) |
Rotational Min Bore Diameter: |
0.150" |
Metric: |
N |
