MICRO 100

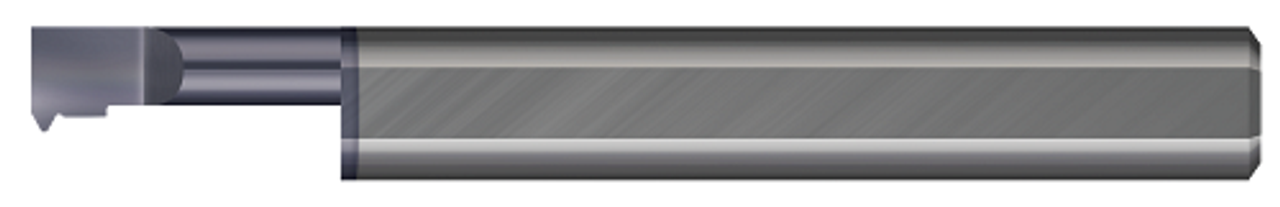

Right Hand - 0.1360" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0226" Projection x 1.50" (1-1/2) OAL #10-24 - AlTiN Coated
- SKU:
- TT-001024-025X
- MPN:
- TT-001024-025X
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.1360" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0226" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length #10-24 - Carbide Thread - Topping Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.1360" |
Head Width: |
0.120" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.250" (1/4) |
Projection: |
0.0226" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0263" |
Offset: |
0.021" |
Angle per Side: |
30 |
Included Angle: |
60 |
Neck Diameter: |
0.0860" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
10-24 |
Metric: |
N |
