MICRO 100

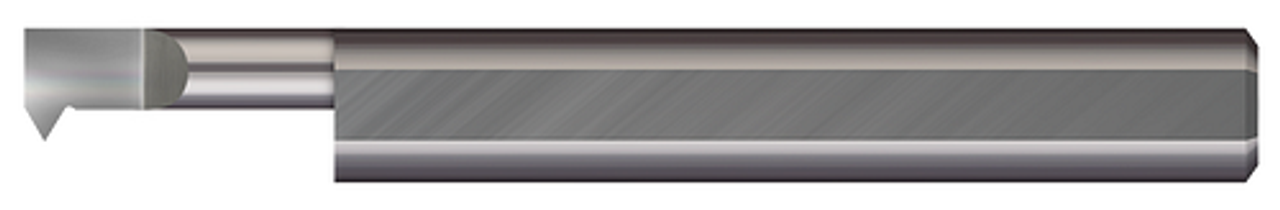

Right Hand - 0.1260" Min Bore DIA x 0.600" Max Bore Depth x 0.0300" Projection x 1.50" (1-1/2) OAL x 0.0020" Radius #20-56
- SKU:
- IT-110600
- MPN:
- IT-110600
- Availability:
- 20
- Shipping:
- Calculated at Checkout
Description
0.1260" Min Bore DIA x 0.600" Max Bore Depth x 0.0300" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length x 0.0020" Radius #20-56 - Carbide UN Thread Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1260" |
Head Width: |
0.110" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.600" |
Projection: |
0.0300" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0475" |
Offset: |
0.017" |
Radius: |
0.0020" |
Angle per Side: |
30 |
Included Angle: |
60 |
Neck Diameter: |
0.0750" (1.9 mm) |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
20-56 |
TPI: |
20-56 |
Metric: |
N |
