MICRO 100

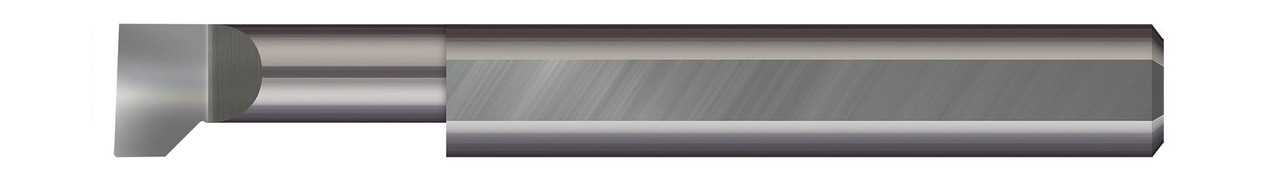

RIGHT HAND - 0.1250" (1/8) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0630" TOOTH WIDTH X 0.0400" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS - ALTIN COATED,LTR-125-6X
- SKU:
- LTR-125-6X
- MPN:
- LTR-125-6X
- Availability:
- 5
- Shipping:
- Calculated at Checkout
Description
0.1250" (1/8) MIN BORE DIA X 0.375" (3/8) MAX BORE DEPTH X 0.0630" TOOTH WIDTH X 0.0400" PROJECTION X 0.1250" (1/8) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS - CARBIDE THREAD RELIEF RIGHT HAND, ALTIN COATED,LTR-125-6X
View AllClose
Additional Information
Min Bore Diameter: |
0.1390" |
Head Width: |
0.125" (1/8) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.0400" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0625" (1/16) |
Corner Radius: |
0.002" |
Face Dimension: |
0.063" (1/16) |
Neck Diameter: |
0.0800" |
Overall Length: |
1.50" (1-1/2) |
Split Length: |
0.150" |
Tooth Width: |
0.0630" |
Metric: |
N |
