MICRO 100
Right Hand - 0.1250" (1/8) Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 1.50" (1-1/2) OAL x 0.0030" Radius
- SKU:
- FGC3-125-030-050
- MPN:
- FGC3-125-030-050
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description

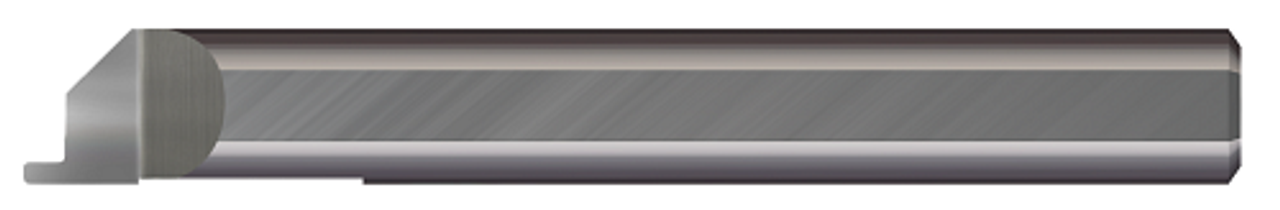

0.1250" (1/8) Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0300" Tooth Width x 0.0500" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length x 0.0030" Radius - Carbide Face Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1250" (1/8) |
Head Width: |
0.125" (1/8) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.0500" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0625" (1/16) |
Radius: |
0.0030" |
Overall Length: |
1.50" (1-1/2) |
Overall Reach: |
0.375" (3/8) |
Tooth Width: |
0.0300" |
Metric: |
N |
