MICRO 100

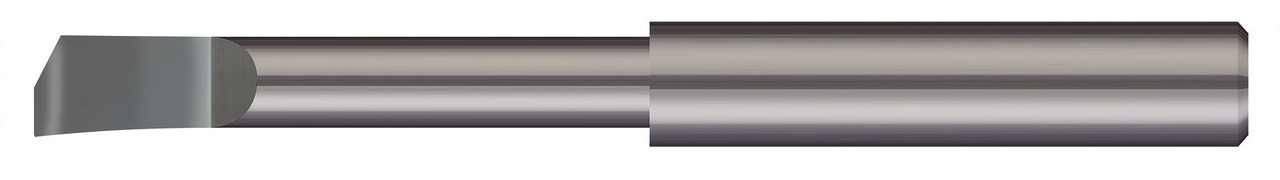

RIGHT HAND - 0.1225" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0125" PROJECTION X 2.00" (2) OVERALL LENGTH ,HBB-135750
- SKU:
- HBB-135750
- MPN:
- HBB-135750
- Availability:
- 19
- Shipping:
- Calculated at Checkout
Description
0.1225" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0125" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH - CARBIDE BORING HELICAL BACK RAKE RIGHT HAND,HBB-135750
View AllClose
Additional Information
Min Bore Diameter: |
0.1225" |
Head Width: |
0.135" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0125" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0675" |
Face Dimension: |
0.094" |
Neck Diameter: |
0.1100" (2.8 mm) |
Overall Length: |
2.00" (2) |
Rotational Min Bore Diameter: |
0.135" |
Split Length: |
0.270" |
Metric: |
N |
