MICRO 100

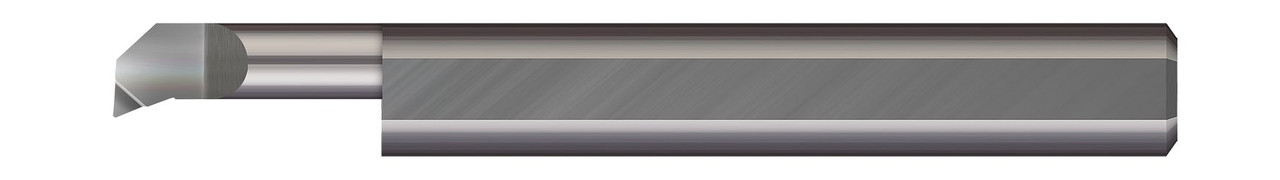

RIGHT HAND - 0.1200" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0570" TOOTH WIDTH X 0.0200" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.004" CORNER RADIUS - ALTIN COATED,PBT-120500X
- SKU:
- PBT-120500X
- MPN:
- PBT-120500X
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.1200" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0570" TOOTH WIDTH X 0.0200" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.004" CORNER RADIUS - CARBIDE QUICK CHANGE - BORING TOP RAKE CHIPBREAKER RIGHT HAND, ALTIN COATED,PBT-120500X
View AllClose
Additional Information
Min Bore Diameter: |
0.1320" |
Head Width: |
0.120" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0200" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0263" |
Offset: |
0.050" |
Corner Radius: |
0.004" |
Face Dimension: |
0.064" |
Neck Diameter: |
0.1000" |
Overall Length: |
2.00" (2) |
Tooth Width: |
0.0570" |
Metric: |
N |
