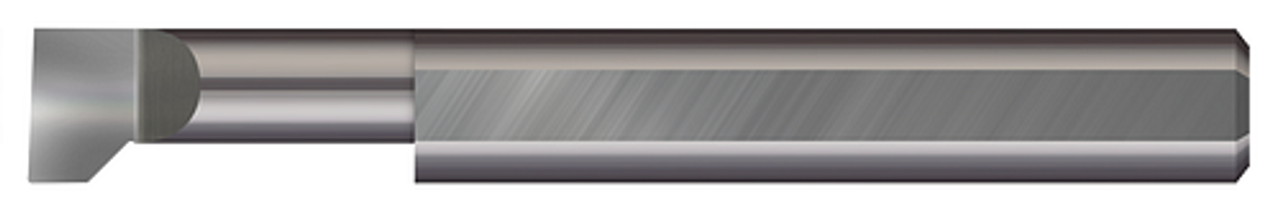

MICRO 100
Right Hand - 0.1040" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0490" Tooth Width x 0.0400" Projection x 1.50" (1-1/2) OAL x 0.002" Corner Radius
- SKU:
- LTR-094-4
- MPN:
- LTR-094-4
- Availability:
- 19
- Shipping:
- Calculated at Checkout
Description
0.1040" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0490" Tooth Width x 0.0400" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length x 0.002" Corner Radius - Carbide Thread Relief Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1040" |
Head Width: |
0.094" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.250" (1/4) |
Projection: |
0.0400" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0315" |
Corner Radius: |
0.002" |
Face Dimension: |
0.063" (1/16) |
Neck Diameter: |
0.0540" |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0490" |
Metric: |
N |
