MICRO 100

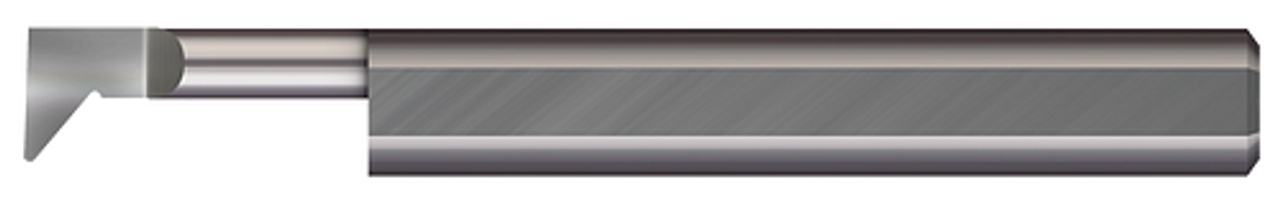

Right Hand - 0.0900" Min Bore DIA x 0.300" Max Bore Depth x 0.0300" Projection x 1.50" (1-1/2) OAL x 0.002" Corner Radius
- SKU:
- PR2-080300
- MPN:
- PR2-080300
- Availability:
- 12
- Shipping:
- Calculated at Checkout
Description
0.0900" Min Bore DIA x 0.300" Max Bore Depth x 0.0300" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length x 0.002" Corner Radius - Carbide Radial Profiling Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.0900" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.300" |
Projection: |
0.0300" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0175" |
Corner Radius: |
0.002" |
Neck Diameter: |
0.0500" |
Overall Length: |
1.50" (1-1/2) |
Metric: |
N |
