MICRO 100

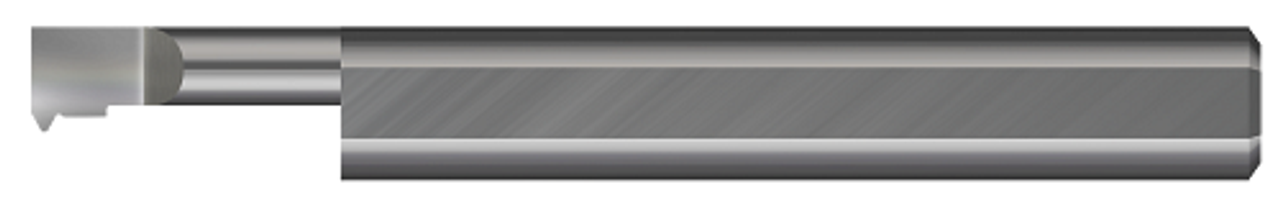

Right Hand - 0.0900" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0123" Projection x 1.50" (1-1/2) OAL #5-44
- SKU:
- TT-000544-025
- MPN:
- TT-000544-025
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.0900" Min Bore DIA x 0.250" (1/4) Max Bore Depth x 0.0123" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length #5-44 - Carbide Thread - Topping Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.0900" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.250" (1/4) |
Projection: |
0.0123" |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0175" |
Offset: |
0.014" |
Angle per Side: |
30 |
Included Angle: |
60 |
Neck Diameter: |
0.0570" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
5-44 |
Metric: |
N |
